Swamp coolers work best in dry climates, specifically, when relative humidity is below 50-60%. According to ASHRAE Standard 62.2, the ideal indoor humidity range for comfort and health is 30-60%. The Honeywell CS10XE evaporative cooler, for example, is recommended for climates where humidity levels are <60%. When humidity exceeds 60%, the cooling effect drops significantly, and the added moisture can make the air feel uncomfortable. Portable, minimalist and eco-friendly, they are a fantastic cooling option for rentals, vans and even pet spaces like dog houses!

In this article, we will calculate the size of the swamp cooler, so you will know how to choose the right size for you.

evaCHILL

The most effective cooling device

buy now

What size evaporative air cooler do I need?

Unfortunately, it is easy to get lost among all the models when deciding on the evaporative cooler sizing.

Swamp cooler sizing differs from picking the air conditioner size because the devices serve a different purpose and use other cooling methods. Air conditioners use BTU (British Thermal Units) to measure cooling capacity, while evaporative coolers are rated in CFM (Cubic Feet per Minute), the volume of air they move. According to the U.S. Department of Energy, the rule of thumb for evaporative coolers is 2-3 CFM per square foot of living space.

However, it is common to see both units on evaporative coolers, so we made an evaporative cooler size guide taking into account both.

While evaporative air coolers and swamp coolers use the exact cooling method, the usual difference is the size of the unit. The terms 'evaporative cooler' and 'swamp cooler' refer to the same technology, they both use water evaporation for cooling. In practice, 'swamp cooler' is often used for larger whole-house or industrial units, while 'evaporative cooler' is more common for smaller portable models. However, the terms are largely interchangeable.

For convenience, we will use both terms to help you decide on the swamp cooler sizes based on your needs. Then, we will dive into more detail with dimensions, installation requirements, CFM, and cooling power.

What size swamp cooler do I need?

The evaporative cooler size you pick will depend on the following criteria.

1. Humidity

We wanted to start with this one because humidity levels in the room you need to cool will define the final efficiency of your device. Swamp coolers work best in dry climates because they use evaporation for cooling. According to ASHRAE Standard 62.2, the ideal indoor humidity range for comfort and health is 30-60%. When humidity exceeds 60%, the cooling effect of an evaporative cooler drops significantly, and the added moisture can make the air feel uncomfortable.

2. Insulation

A poorly insulated space will require more cooling power than a well-insulated one. Poor insulation increases the cooling load on your evaporative cooler, potentially requiring a unit with higher CFM. The U.S. Department of Energy recommends improving insulation and sealing air leaks to reduce overall cooling needs.

3. Size of the space you need to cool

The standard formula for calculating required CFM (Cubic Feet per Minute) is:

(Length × Width × Ceiling Height) ÷ 2 = Required CFM

For example, a 500 sq. ft. room with an 8-foot ceiling: (500 × 8) ÷ 2 = 2,000 CFM.

4. Personal requirements

Personal vs. whole-room cooling: There is a big difference in sizing depending on whether you need to cool an entire room or just your personal space. Evapolar devices are designed for personal zone cooling (3-4 feet radius), not whole-room cooling. For a desk, bed, or workstation, you don't need complex sizing calculations, just choose a model based on your coverage needs:

• evaCHILL: Compact, up to 3 m²

• evaSMART: Larger, up to 4 m² with app and voice control

The evaporative cooling sizing will also depend on your activity within the space — the cooling needs will differ between working out or simply chilling with a book. Read also: Do Swamp Coolers Actually Work?

Evaporative Cooler Size Calculator

The usual formula to calculate the swamp cooler size is the following:

Square feet needed to be cooled X ceiling height (in feet).

You divide it by two, and this quotient is how many swamp cooler CFM you will want in most climates. In hotter regions (like the southern U.S.), aim for 1 air change every 1-2 minutes, which means dividing by 1-1.5 instead of 2. In milder climates, 1 air change every 3 minutes may be sufficient.

We would like to be precise that most swamp coolers and evaporative coolers are designed to cool down your personal area efficiently. If you need whole-room cooling, refer to our AC sizing guide. However, most residential swamp coolers are designed for single-room or zone cooling, typically under 1,500 sq. ft. per unit. For larger spaces (warehouses, garages), multiple units or commercial-grade coolers may be required.

You can also measure the evaporative cooling potential in BTUs for rough comparison, though CFM is the standard for swamp coolers. According to the U.S. Department of Energy, a rough conversion is: 1 CFM ≈ 30-40 BTUs. However, this is not an exact equivalent, evaporative coolers add moisture to the air, while ACs remove heat, so BTU comparisons are approximate. Thus, the swamp cooler size calculator helps you make the right choice.

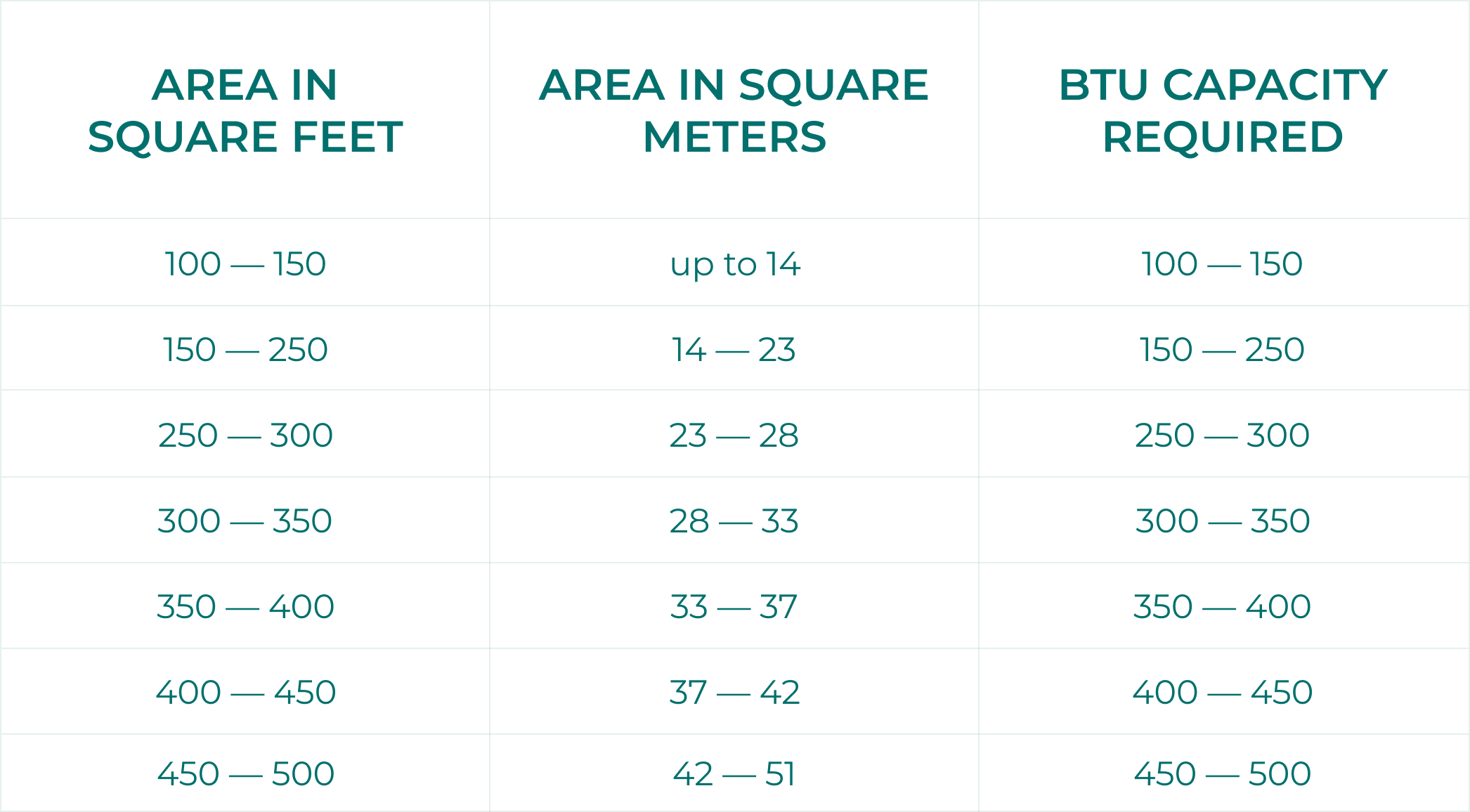

Swamp cooler sizing chart in BTU

When sizing your evaporative cooler, make sure you also consider the ceiling height. If you are looking for a swamp cooler for the whole place and not just your personal cooling, the global rule is that an ideal evaporative cooler can replace the indoor air in under 2 minutes. This is where all the above calculations come in handy.

Note: The BTU values shown above are approximate equivalents for evaporative coolers. Unlike traditional ACs, swamp coolers are primarily rated in CFM (Cubic Feet per Minute), the volume of air they move. The BTU scale is provided here for a quick reference, as many users are familiar with it from AC sizing guides.

For a more accurate calculation, use the CFM formula: (sq. ft. × ceiling height) ÷ 2 = required CFM . A rough conversion is 1 CFM ≈ 30-40 BTUs . Always refer to the CFM rating when comparing evaporative coolers.

Regional adjustment: In hotter climates (like the southern U.S.), aim for 1 air change every 1-2 minutes, which means dividing by 1-1.5 instead of 2. In milder climates, 1 air change every 3 minutes may be sufficient . For areas with higher humidity, consider a larger unit or a dehumidifier.

According to ASHRAE Standard 62.2, maintaining indoor humidity between 30-60% is recommended for health and comfort. Evaporative coolers work best in dry climates, when humidity exceeds 60%, their cooling efficiency drops significantly .

Recommendations and tips for different rooms and occasions

The evaporative cooler sizes and types will also depend on how and where you plan to use them.

• Large windowless spaces such as warehouses and manufacturing facilities

If these places lack windows, evaporative coolers can still work with dedicated ventilation. They require a constant supply of fresh air and exhaust paths. According to ASHRAE Standard 62.2, mechanical ventilation must be provided in windowless spaces. For industrial facilities, a ducted evaporative cooling system with supply and exhaust ducts is often necessary. Consult a professional HVAC engineer for facility-specific requirements. We recommend you consult a professional to ensure your industrial facility is suitable for a swamp cooling system.

• Relatively large homes and workshops with windows

Window evaporative coolers are usually used in homes and workshops and can be easily stored during the winter months.

• Whole building

You might need to install several air coolers or a ducted cooling system. The latter requires installation work, making it a more solid option when you own the place.

• Personal cooling

Swamp coolers are the best option when it comes to your personal cooling. Whether you are working out, focusing on a deadline, or chilling with your favorite book, you simply need a small portable evaporative air cooler for a flow of fresh air. Evapolar air coolers are the best solutions in the world of personal cooling. Direct the flow from the grill at you and enjoy the most efficient, eco-friendly, gentle breeze. Here are the current models for 2026:

• evaCHILL ($99): Compact, lightweight, ideal for desk or bedside cooling

• evaLIGHTplus ($149): With LED backlight and larger water tank

• evaSMART ($229): App and voice control, largest coverage area (up to 4 m²)

Evaporative air coolers use way less energy than traditional air conditioners. On top of that, they are environmentally friendly. Choosing the best evaporative air cooler like Evapolar as your cooling solution can help save money on electricity and help keep the environment clean while keeping your personal space fresh and comfortable.

Evapolar doesn’t need any complex calculations to size the cooler because they focus on individual spot cooling. They direct all their efficiency at you, making your space cool and comfy. On top of that, there are many ways to boost your personal swamp cooler and make it work even better. They have also been voted the best cooling devices for remote work. Check out for yourself! Evapolar devices are perfect for home offices, studios, and any small space where you need focused, energy-efficient cooling without the noise and complexity of traditional AC units.

People also ask (FAQ):

1. What is the difference between a swamp cooler and an evaporative air cooler?

The terms are largely interchangeable — both use evaporation as the cooling method. In practice, "swamp cooler" is often used for larger whole-house or industrial units, while "evaporative air cooler" is more common for smaller portable personal models. Both technologies work on the same principle.

2. What is the difference between swamp coolers and air conditioners?

The difference is in the cooling method. Air conditioners use refrigerants in a closed-loop system to remove heat from the air and expel it outside. Swamp coolers use water evaporation to cool the air. ACs work best with windows closed, while evaporative coolers require open windows or ventilation to allow humid air to escape and fresh air to enter.

3. Which one is cheaper to run, an evaporative air cooler or an air conditioner?

Evaporative air coolers are significantly more energy-efficient than traditional ACs. A typical portable AC uses 800-1,500W, while evaporative coolers use 26-87W. Evapolar devices use only 7.5-12.5W, up to 100 times less energy than a standard portable AC. According to a scientific review, evaporative cooling systems can achieve energy consumption as low as 0.3-1.2 kW/t with minimal environmental impact.

4. Are evaporative air coolers eco-friendly?

Yes, evaporative coolers are one of the most eco-friendly cooling methods. They use no chemical refrigerants (like Freon or HFCs), which have high global warming potential. According to scientific research, their reliance on water rather than harmful refrigerants results in minimal environmental impact, making them a sustainable alternative to traditional cooling.

5. What is the ideal humidity for the evaporative air coolers to be the most efficient?

Evaporative coolers work best when the dew point is below 50°F. This is the industry standard recommendation. According to Evapolar's official guide, the most effective conditions are dry climates with humidity below 70%. If humidity exceeds 70%, the cooling effect drops significantly. Evapolar's official table shows that at 85°F (30°C), the outgoing air temperature can be lowered to 65-69°F (18-20°C) at 30-40% RH

Disclaimer: This sizing guide is for informational purposes only. Performance may vary based on climate, insulation, and room conditions. Always refer to the manufacturer's specifications for your specific model. For complex installations, consult a professional HVAC technician.
